WinGyroS North Seeking Gyro Directional Sensor

Traditional gyro services require the use of wireline winches to drop the instrument, such as directional sloping or lateral windowing, and the instrument must be removed from the wellhead after completion of the measurement using the gyro, making it impossible to monitor the well trajectory in real time, and the measurement time is long and inefficient.

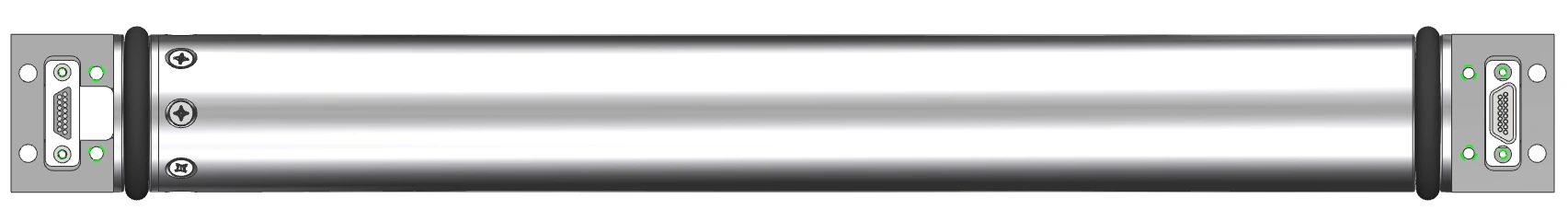

WinGyroS is a self-searching north seeking gyro probe designed for oil drilling. It adopts solid-state gyro sensors, which are not subject to magnetic interference, have no internal wear parts, high precision and good vibration resistance. The system adopts inertial navigation platform, and completes a north-finding measurement in 30S. Real-time data uploading through MWD mud pulser, realising measurement with drilling, which can greatly improve the efficiency of directional drilling.Independent intellectual property rights, can be customised according to customer requirements.

• Small Diameter Directional Gyro Sensor (35mm OD *243mm length)
• 2 axis Solid-state sensors, no field calibration required
• The fastest True North Seeking Gyro, North seeking time 30sec
• Pulse-based MWD systems and EM

1.  Inclination accuracy ±0.1°
2. Azimuth accuracy ±1.0°
3. Surveying   Time 30secs(standard)
4. Operating Modes   Stop pump measurement/Real time Toolface
5. Input Voltage 12~36V 40mA@28V
6. Range Temperature 110°C
7. Diameter 35mm*243mm
8. Connector MDM15
9. Vibration 10G RMS 50Hz to 200Hz
